Echo® eARC/ARC Audio Extractor

In stock

£49.00 Inc. VAT

£40.83 Exc. VAT

Not eligible for VAT exemption Read more

The Echo® HDMI eARC/ARC Audio Extractor is a simple and affordable solution to connect your Induction Loop, TV Listener or other Assistive Listening Devices to your modern TV which may not support Optical, coaxial or analogue connection.

Extract sound from eARC/ARC HDMI port
Product code 108

SKU: 108

Product details

The Echo® HDMI eARC/ARC Audio Extractor is designed to extract audio signal from TV’s HDMI eARC/ARC port and output it to external audio devices such as assistive listening devices, soundbars, AV receivers, amplifiers, or powered speakers in situation when TV does not provide any audio outputs other than HDMI eARC/ARC.

This is particularly useful for TVs that lack optical or traditional audio outputs. As some of modern TVs no longer include these connections, this extractor provides a simple and effective solution for accessing audio.

Main features:

Compatible with:

SPDiF output (Digital Optical
Coaxial Output (Digital)
3.5mm headset output (Analogue)

Support:

switch noise reduction
automatic signal mute function
trasnmission of 192 kHz audio sampling rate

Optical and coaxial interface supports 5.1 channel transmission

This set includes:

Audio extractor
Power supply USB DC5v 2A
USB C power cable
user manual

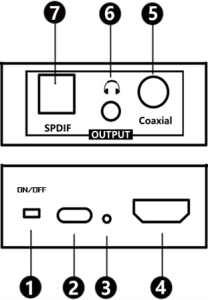

Diagram:

1. Power On/Off switch

2. USB C power input

3. eArc/ARC LED indicator

4. eArc/ARC HDMI input port

5. Coaxial (Digital) Output port

6. 3.5mm audio port

7. SPDiF (Optical) output port

Note:

You may need to activate TVs audio output under TVs Audio/sound settings. When connecting Assistive Listening Devices (Induction Loops, TV listeners etc) always set TV Digital Audio Format to PCM/LPCM. For more info check TV manual.
TVs may cut off internal speakers when using HDMI ARC port
Always check if your TV support HDMI eARC/ARC port
HDMI cable not provided
